IEC 60529 IPX8 Continuous Immersion Test Chamber 350L High Pressure Water Tank
Products Description

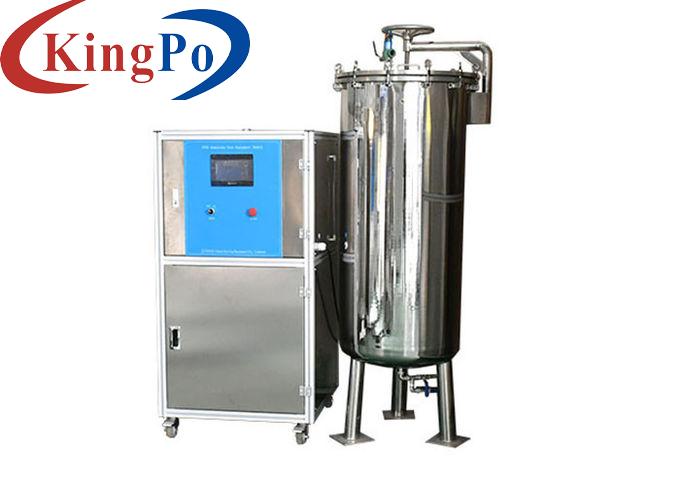

IEC 60529 IPX8 Continuous Immersion Test Chamber 350L High Pressure Water Tank
Product overview:
This IPX8 continuous immersion test chamber IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)”. It is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under continuous immersion in water at degree IPX8. By controlling the depth of the sample in the water to achieve a standard equivalent pressure, and simulating water depth pressure by applying a certain pressure of air pressure, to produce water pressure across the entire surface of the specimen enclosure. The water depth range simulation of IPX8 is harsher than IPX7.
Equipment features:
1. The pressure vessel is made of 304 stainless steel, with high-precision overall sub-arc welding and good pressure resistance.
2. The outside of the tank is connected with a transparent tube, and the outer layer is attached with a stainless steel ruler, so that the internal water level can be clearly observed.
3. Special silicone seal ring, good elasticity, not easy to be damaged.
4. The tank lid above the device is fixed with 8 ring screws (distribution auxiliary steel rod).
5. The tester is equipped with safety valve, which automatically releases the pressure when it exceeds the rated pressure to prevent improper operation by the operator and the set pressure is too high
6. Electric control components are imported brands (such as: LS, Panasonic, Omron, etc.); pneumatic components are Airtac brands, to ensure the stability and service life of the equipment.
7. The test time can be set to: 0-999 minutes. When the test time is reached, the pressure can be automatically stopped and the air in the tank can be automatically exhausted. The operator can open the tank lid to take out the test sample.
8. Pressure display: The pressure is displayed by a pressure sensor, and the internal pressure can be automatically stabilized. The control accuracy: ± 0.002Mpa, the sensor display accuracy: 0.001Mpa.
9. 4 Water inlet and drain valves are installed at the bottom of the device.
Technical Parameters:
SN4411-30M-250L
(Optional)
SN4411-50M-250L
(Optional)
SN4411-50M-350L
(Optional)
φ500mm*1200mm H
φ600mm*1200mm H
φ500mm*1200mm H
φ600mm*1200mm H
With the terminals for connecting power supply for sample, has 15A bearing capacity. Note: the external power supply device should be prepared by client.
The terminals are showing as following:
Auxiliary steel bar *1 PC
Intake pipe *1 PC
Water pipe *1PC (About 5 meter)
Working environment:
*The following working environment should be provided by user
Temperature:5℃～35℃
Relative humidity:≤85%
Air pressure:86kPa～106kPa
Model no.:
SN4411-30M-350L
External size
Approx. L600*W780*H1750mm
Approx. L700*W880*H1750mm
Approx. L600*W780*H1750mm
Approx. L800*W950*H1750mm
Inner size
Vessel wall thickness
3mm
3mm
4mm
4mm
Vessel material
Stainless steel
Flange thickness
20mm
20mm
25mm
25mm
Flange material
Stainless steel
Top lid opening method
Lifting by cylinder
Equipment weight
120KGS
130KGS
140KGS
150KGS
Pressure control method
Auto adjust
Pressure error
±0.002 Mpa
Sensor display accuracy
0.001Mpa
Test water depth range
0—30M
0—30M
0—50M
0—50M
Pressure adjustment range
0.00—0.3Mpa
0.00—0.3Mpa
0.00—0.5Mpa
0.00—0.5Mpa
Safety valve exhaust pressure
0.35Mpa
0.35Mpa
0.55Mpa
0.55Mpa
Maximum ultimate pressure
0.4Mpa
0.4Mpa
0.6Mpa
0.6Mpa
Test time
0-999 min
Power supply terminals for sample
Protection device
Pressure safety valve protection, earth leakage switch protection
Pressure adjustment method
By setting value of the pressure sensor
Accessories
Use site
The ground is flat, the drainage is smooth, the floor and wall are waterproofed, and a floor drain or drainage ditch is installed
Ground load capacity is not less than 300kg / m2
Field is well ventilated
No strong vibration around the equipment
No flammable, explosive, corrosive substances and dust around the equipment
Appropriate use and maintenance space is left around the equipment:
Back, left, right, top of the device: 600mm; front of the device: 1000mm
Environment conditions
Power supply
AC 220V, 50Hz
Water supply
Tap water / pure water
Gas source
User should prepare the air compressor, the recommended output air pressure: 0.6Mpa—0.8Mpa.
