Φ1200mm Automatic Inclined Plane IEC 60335 Electrical Lab Test Equipment
Products Description

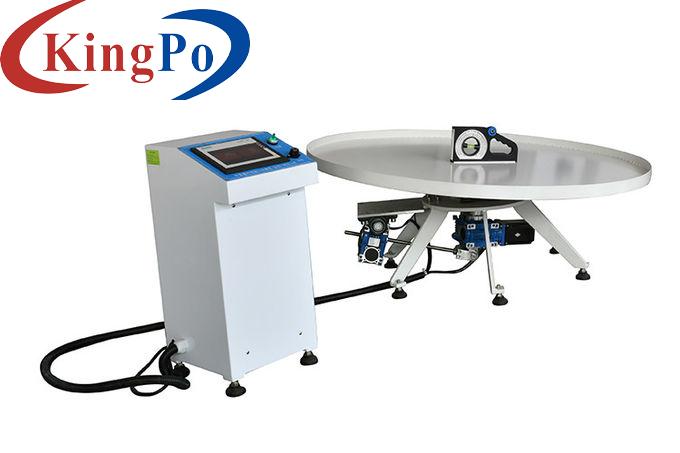

IEC 60335-1 Φ1200mm Automatic Inclined Plane
Product overviw:
This inclined plane meets the requirements of IEC 60335-1 clause 20.1. It is used to test the stability of household and similar electrical appliances such as refrigerators, washing machines, air conditioners and other appliances and similar electrical appliances, etc. under a certain tilt angle and rotation of the workbench.
Structure and function:
The inclined plane has a large working bench with diameter 1200mm, it adopts PLC control and Simens touch screen, the rotation speed and inclinded angle can be preset and controlled automatically during test. The surface of the turntable is not smooth to prevent the appliance and the turntable from sliding, and there is a 30mm height guard bar around the turntable.
Technical Parameters:
Configuration requirements
Inclined angle
0～30.0 Continuously adjustable, Siemens touch screen display, fully automatic control.
Angle accuracy
0.5
Maximum load
The sample weight cannot be more than120kg.
Diameter of the turntable
Φ1200mm, the surface of the turntable is not smooth to prevent the appliance and the turntable from sliding, there is a 30mm height guard bar around the turntable
Rotation speed
1±0.2 rpm
Rotation angle
360° driven by servo motor
Transmission mode
turbine worm
Machine structure
304 stainless steel plane and aluminum alloy structure.
Made of tool steel.
Angle adjustable range 30°-0°-60°.
Length: about 102mm
Width: about 46mm
Height: about 49mm
