BS EN 12983 2Lb Non Stick Cookware Coating Abrasion Resistance Testing Equipment
Products Description
BS EN 12983 2Lb Non Stick Cookware Coating Abrasion Resistance Testing Equipment
Product Overview:
This product is conforms to BS EN 12983-1, and is customized according to customer requirements and is a professional equipment dedicated to wear resistance testing of non-stick pan coatings. It can test the round or square non-stick pans, which size is less than 400*400mm.The station can be customized.
Technical Parameters:
Working Principle:

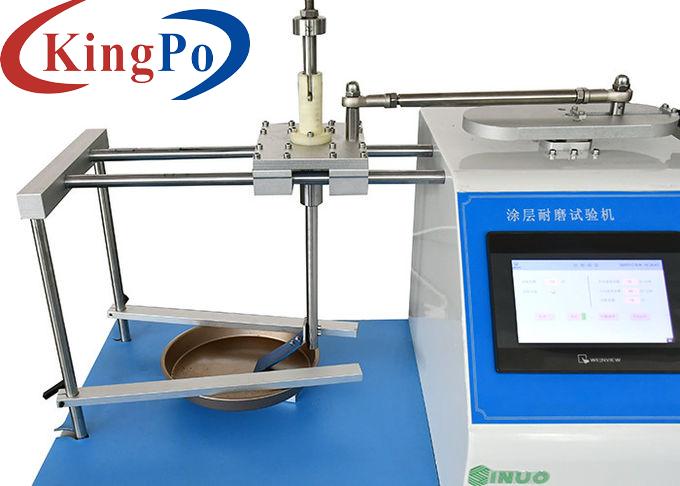

The working component with the scouring pad is parallel to the inner coating surface of the non-stick pan. Use a weight to apply 2Lb of gravity to the working component to make it fully contact the coating surface, and put a certain amount of test liquid in the pan ( According to the standards), the friction head is driven by the motor to do reciprocating motion to achieve the purpose of testing the wear resistance of the non-stick pan coating.
Input Power
Match client's local power supply requirements
Control Method
PLC control, touch screen operation
Station
One (can be customized)
Drive Mode
Motor
Test Speed
30 times /min, adjustable
Abrasion Stroke
2.45-10cm, adjustable
Test Times
0-999999, can be preset
Loading Weight
2Lb(907.2g)
